Netter – Germany – Furnace Lining Vibration

Furnace Lining Vibrator

• Compacting of dry refractory mass for induction furnace
• Constant, effective compaction
• Solid in-tension, vibration of the total mould
• Manual or hydraulic tightening according to selected type
• Compacting in a few minutes
• Same vibrator also for bottom

Application

Netter vibrating crosses of NKH and NKM series are used for compacting dry refractory mass in induction furnaces.

Design and functioning principle

TThe Netter vibrating cross consists of a cross-shaped clamping fixture and a pneumatic external vibrator of NVT series. The vibrator is attached to the cross by a quick-clamping device of the NVH 4 series.

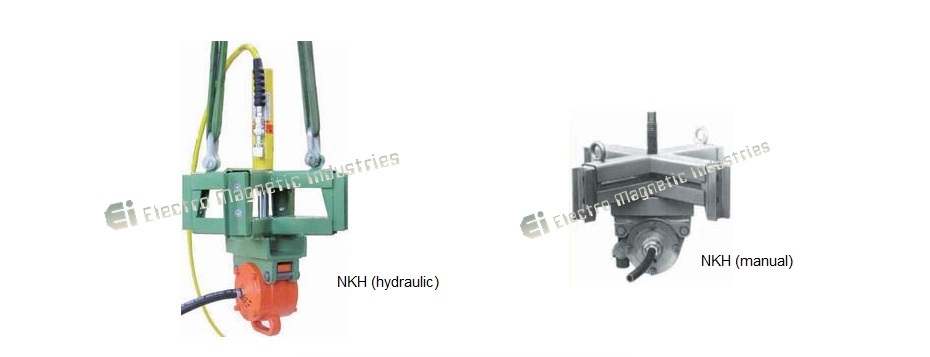

The cross is tightened either manually by means of a shaft (NKM) or by a hydraulic cylinder (NKH). When tightened , the 4 clamping jaws extend equally.

Hardwood battens, laid between the vibrating cross and the wall of the stamping mould, assure the adjustment of the vibrating cross as well as the constant power transmission. The compaction is caused by the vibrating motion of the complete mould.

The bottom can also be compacted by using the same vibrator mounted on a base-plate.

Netter Vibration offers the accessories required for the mounting, installation, control and monitoring of vibrators and impactors.

Netter provides solutions. Consult our experienced application technicians.
